The rubber supports and nails are composed, unlike rubber feet, by a rubber part without screws.
Rubber supports have two holes to be assembled with screws or rivets, while rubber nails are assembled by pressure.
They are usually installed as rubber support or shock absorber pads.

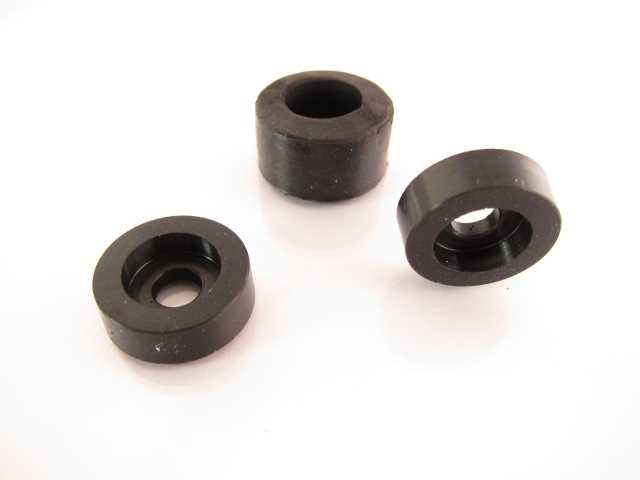

Rubber supports
Rubber support assembly with screws or rivets. (Black rubber)
Standard material SBR.

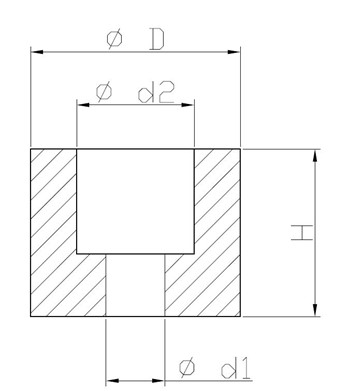

| Code | D | H | d1 | d2 |
| APP06 | 24 | 6.5 | 3 | 13 |
| APP05 | 16 | 5 | 5 | 9,5 |
| APP08 | 20 | 8 | 5 | 11,5 |
| APP11 | 16,5 | 11 | 5 | 10 |
| APP15 | 20 | 15 | 5 | 12 |
| APP16 | 21 | 16 | 5 | 10 |
| APP24 | 25 | 24 | 5 | 11 |
| APP20 | 45 | 20 | 7 | 20 |
| APP25 | 30 | 25 | 6 | 11 |
